BALE PROCESSOR

7200-LMH

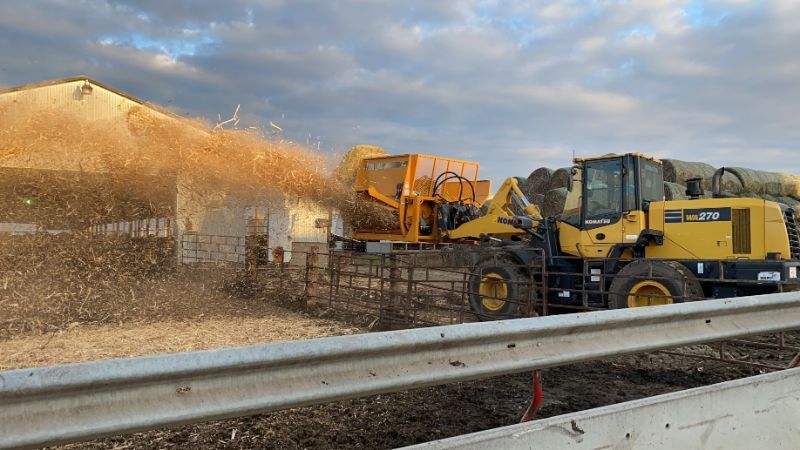

The 7200-LMH Bale Processor is the first-of-its-kind loader mounted, hydraulically driven bale processor for wheel loaders. Leading the industry in speedy and efficient bale processing, the 7200-LMH is perfect for bedding, feeding, and stockpiling.

Driven by the loaders hydraulics, the 7200-LMH offers easy hook ups for the loader user. The high torque design tears through bales without clogging.

Our 7200-LMH Bale Processor gives loader operators the unmatched ability to shred bales in any condition.

  • Easily Attaches to Front End Wheel Loaders
  • Hydraulically Driven from the Loader Carrier
  • Simple Design Generates Unmatched Processing Efficiency
  • 3 Bale Capacity
  • Load Bales from the Ground or Stacks
  • In-Cab Control Panel

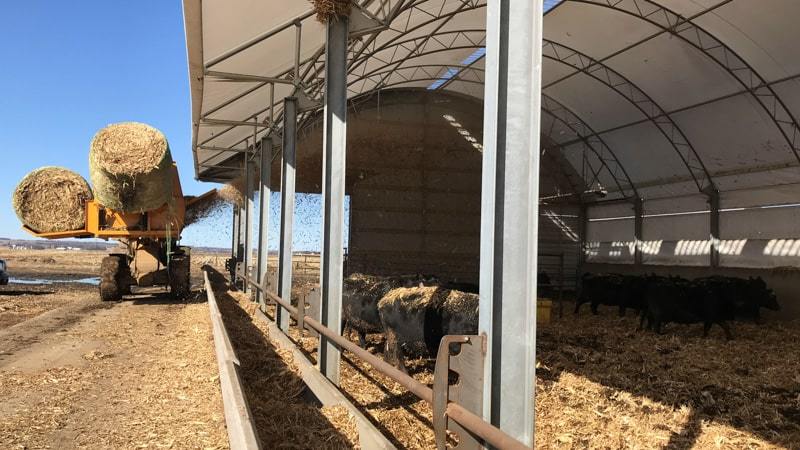

  • Bunk Feeding and High Discharge Bedding up to 65'

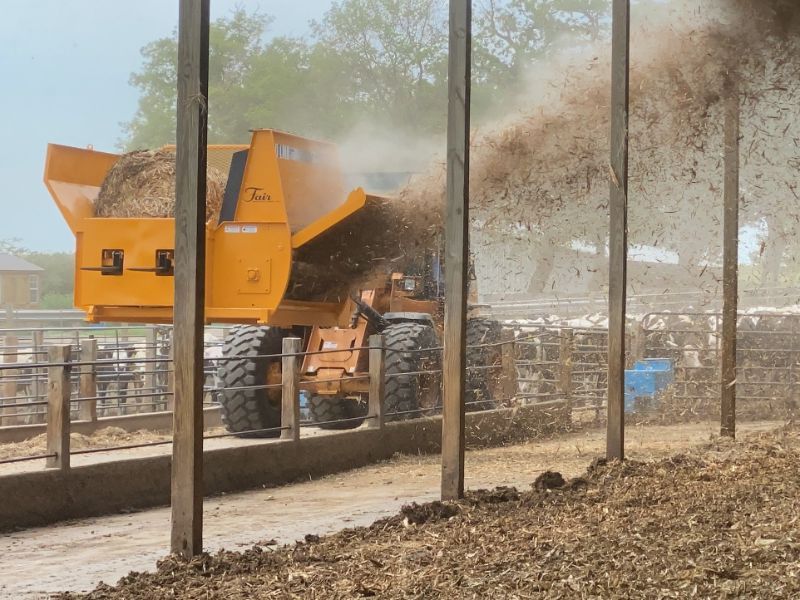

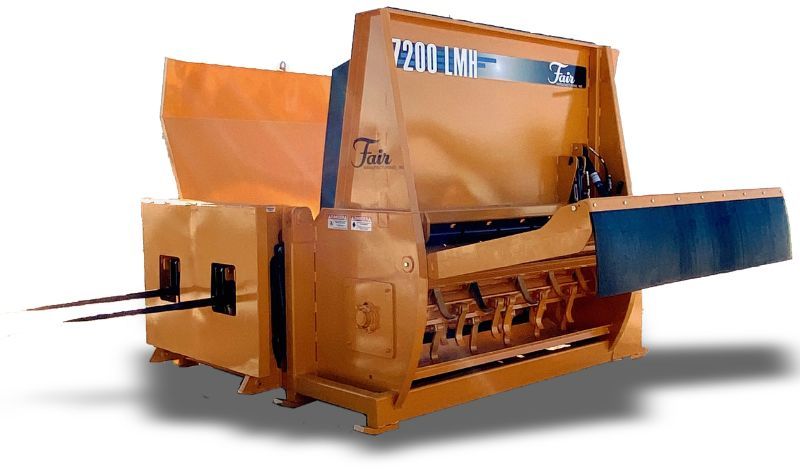

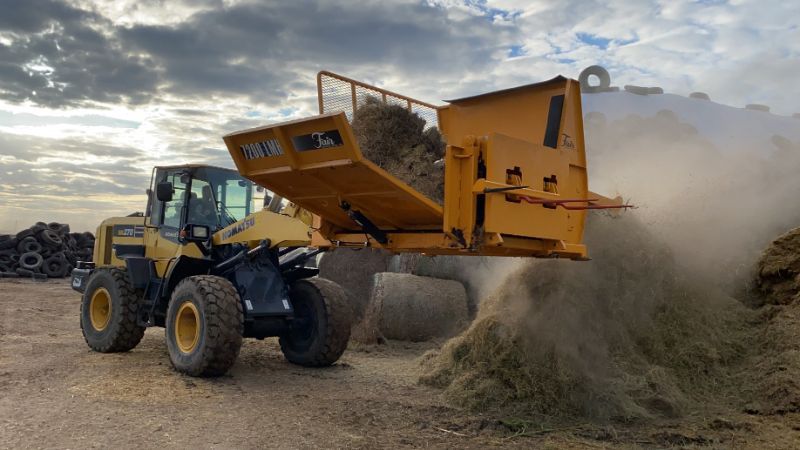

7200-LMH Bale Processor efficient designThe high torque motor provides power directly to the shredding rotor which discharges the material through a large opening. This simple design virtually eliminates plugging problems as wet material has nowhere to hang up on as it is expelled directly off of the flails into the air.

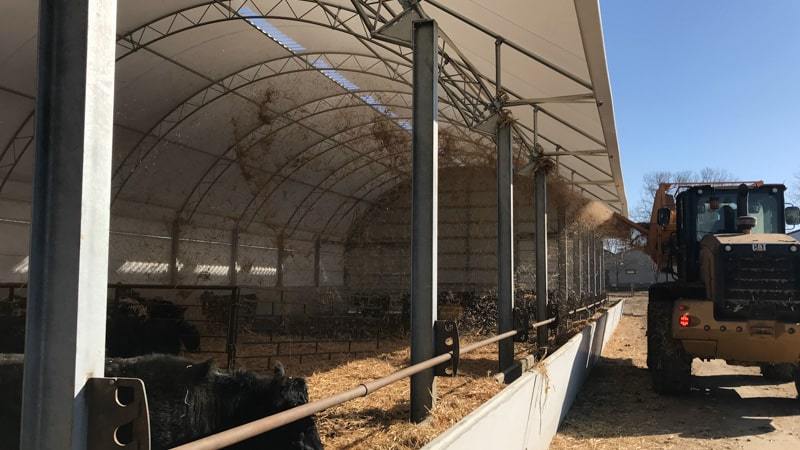

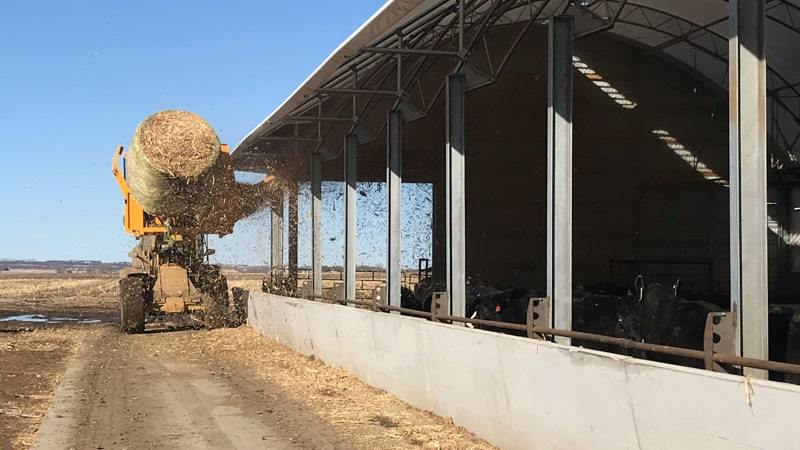

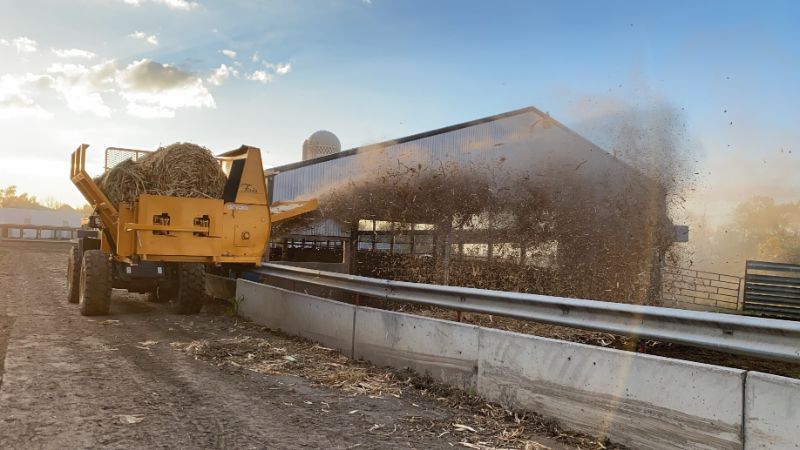

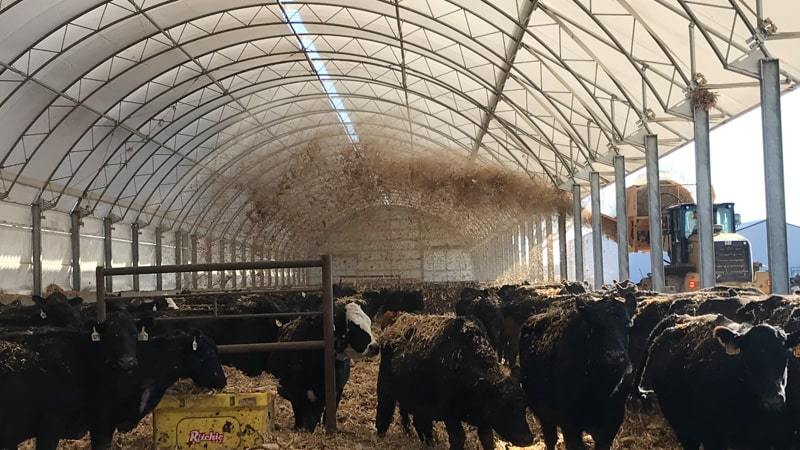

This design also permits bedding over gates and panels or bedding into barns by simply elevating the processor with the loader carrier.

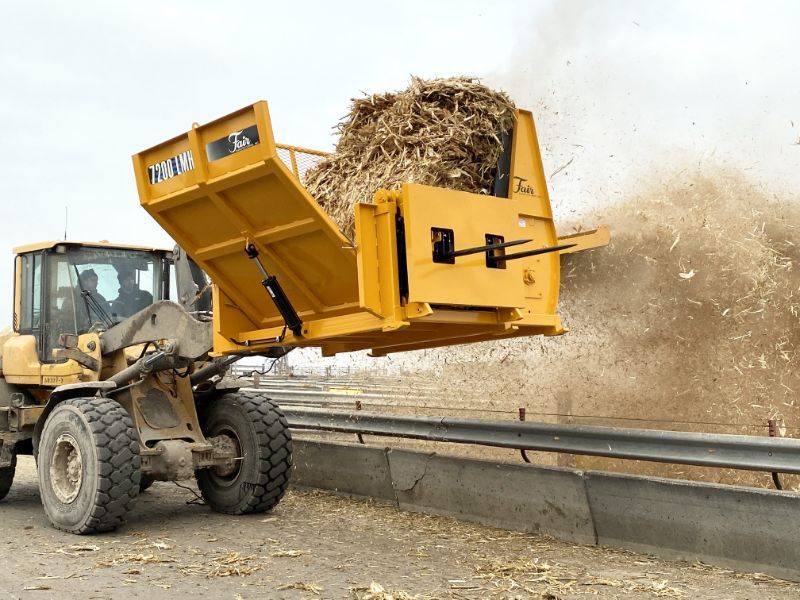

7200-LMH Bale Processor with 3 balesThe side wall opposite the rotor can be lowered down to carry a third bale.

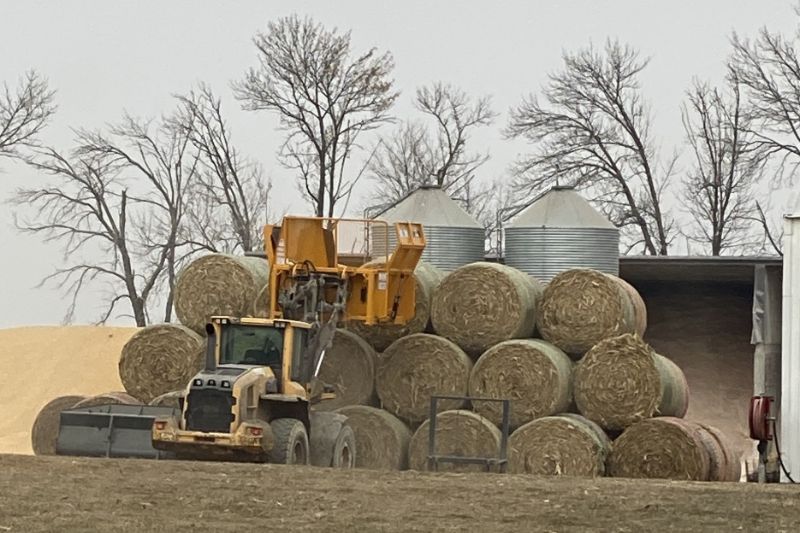

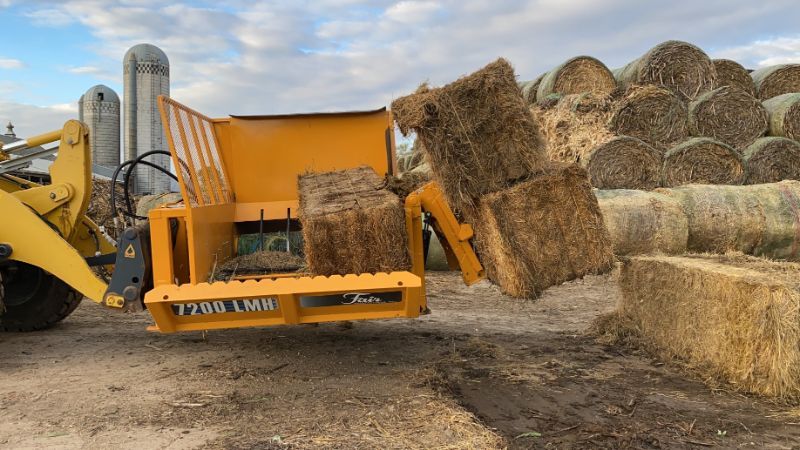

7200-LMH Bale Processor loading balesSpear loading loading enables bales to be loaded from the ground or from stacks without disturbing other bales. Optional forks also easily attach to the lift.

Hydraulic Slug BarsThe hydraulic slug bars allow the operator to decrease knife exposure as the bale gets processed down to a smaller core for complete control of discharge volume.  (standard on all models)

In Cab Controls

The in-cab control panel allows the operator to control all of the functions of the 7200-LMH processor.

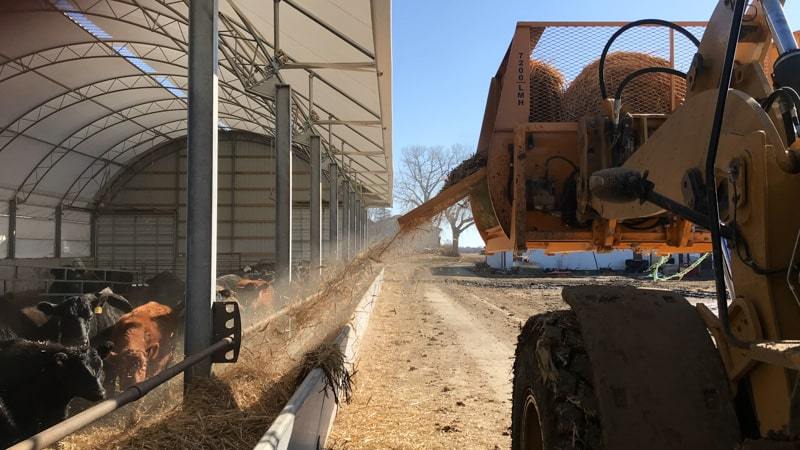

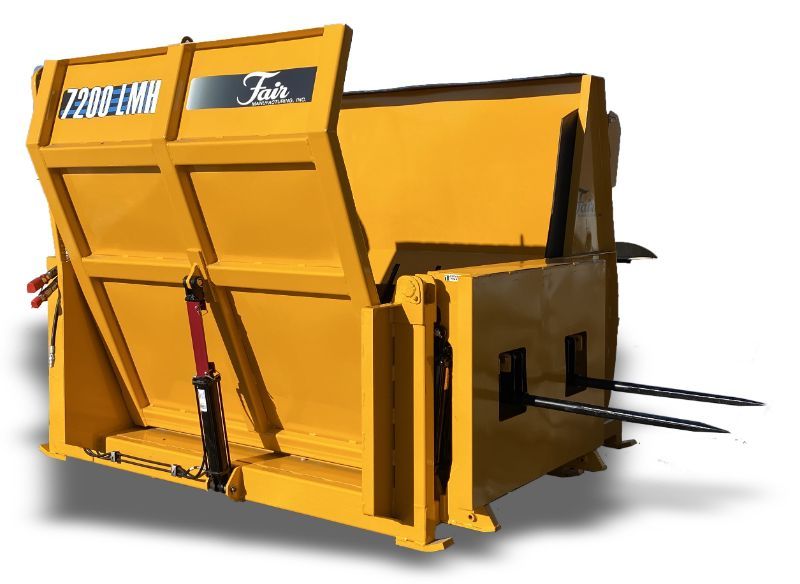

Adjustable Discharge DoorThe hydraulically operated door enables operators to bunk and windrow feed or fan out hay for bedding from the convenience of the cab.

Easy Twine RemovalThe patented parallel running bars create separation between the twine and rotor, allowing the operator adequate space to insert a cutting tool for easy twine removal.

MODEL7200-LMH
Horsepower:170 HP
PTO:1,000
Hydraulic Remotes:1
Bale Size Capacity:6x6' - 3 Bales
Slug Bar Adjustment:Hydraulic
Controls:Wireless, In-Cab
Length:8'6"
Height:7'0"
Width:8'2"
Weight:4,500 lbs

7200-LM & 7200-LMH Bale Processor Brochure

TOUGHEST EQUIPMENT ON THE MARKET.

SET UP A CALL WITH OUR SALES TEAM

JOIN OUR MAILING LIST

Sign up to receive our latest innovations & products
Something went wrong. Please check your entries and try again.

FAIR MANUFACTURING builds equipment you trust in the worst field conditions. We know you have a reputation to uphold and a community who relies on you. Our products have been tested, tried and abused in the field for over 50 years.

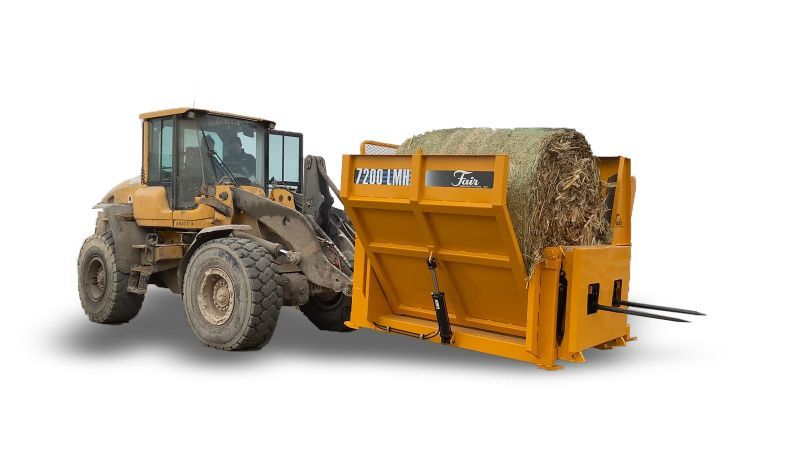

7200-LMH Bale Processor by Fair Manufacturing on a front end loader
