FAIR MANUFACTURING BALE PROCESSORS

BALE PROCESSOR

7830

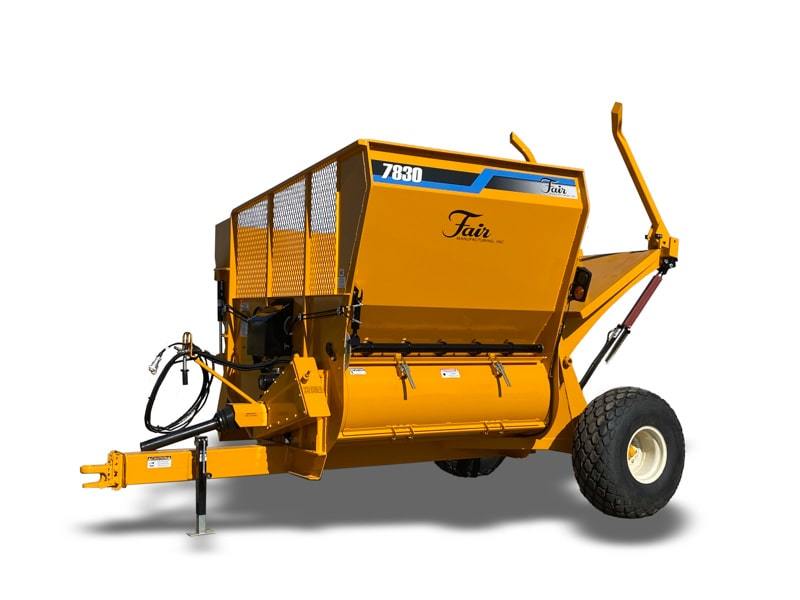

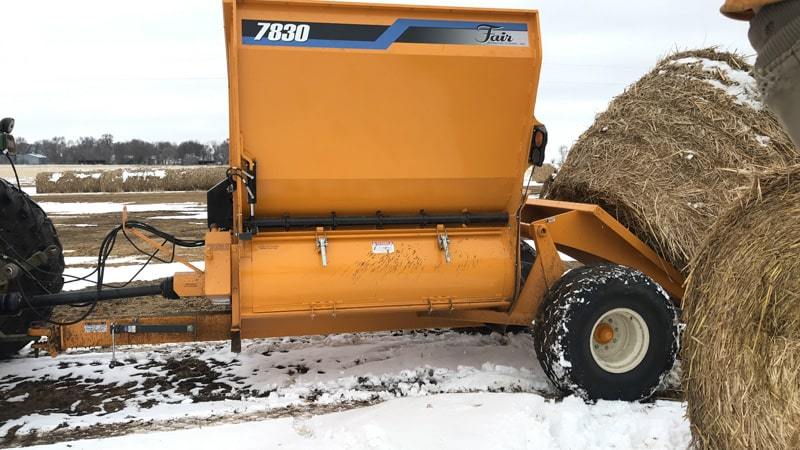

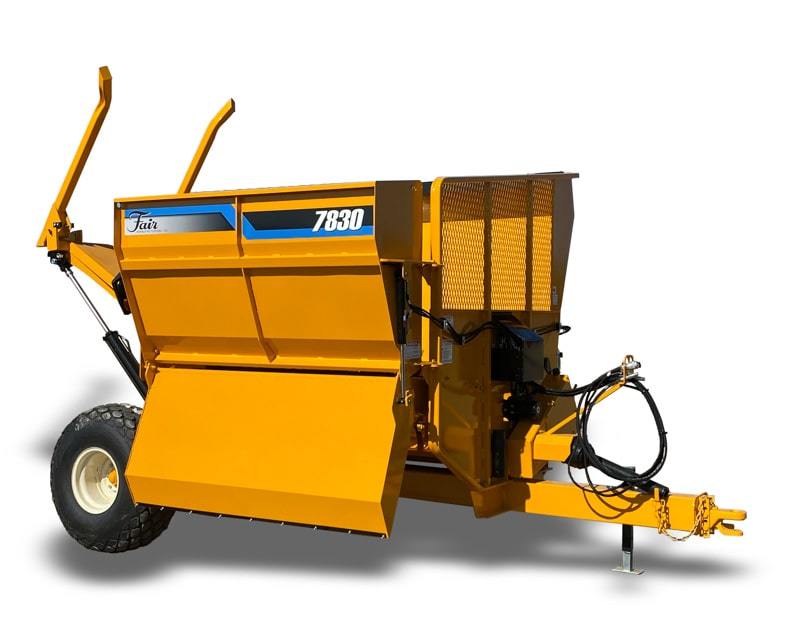

The 7830 Bale Processor is our fully loaded, side discharge bale processor with in-cab control panel.

The hooking up process is made simple with the in-cab control panel. Only one hydraulic remote is required, allowing an easy connection between your bale processor and tractor. Electric slug bar adjustment saves you time and energy.

Minimize time and effort spent wrestling with manual controls. The 7830 Bale Processor will shred through any bales in any condition - all while making hook up a breeze.

  • Exclusive Bale Ejection Door
  • Easy Maintenance Access
  • Adjustable Hay Discharge Opening
  • Hydraulic Slug Bars
  • In-Cab Control Panel
  • Heavy Duty Conveyor
  • Patented Rotor Design

Big Gap Slat Spacing

A large gap between the slats pushes the bale rather than carrying the bale, translating to less slippage of the bale over the slats and less wear and tear on components (standard on all models).

Stationary Knives & FlailsThe flails on the rotor pass through removable stationary knives to chop hay for a more palatable consumption and a finer cut. (standard on all models)  5/8”x 2” flails are heaviest on the market.

Hydraulic Slug BarsThe hydraulic slug bars allow the operator to decrease knife exposure as the bale gets processed down to a smaller core for complete control of discharge volume.  (standard on all models)

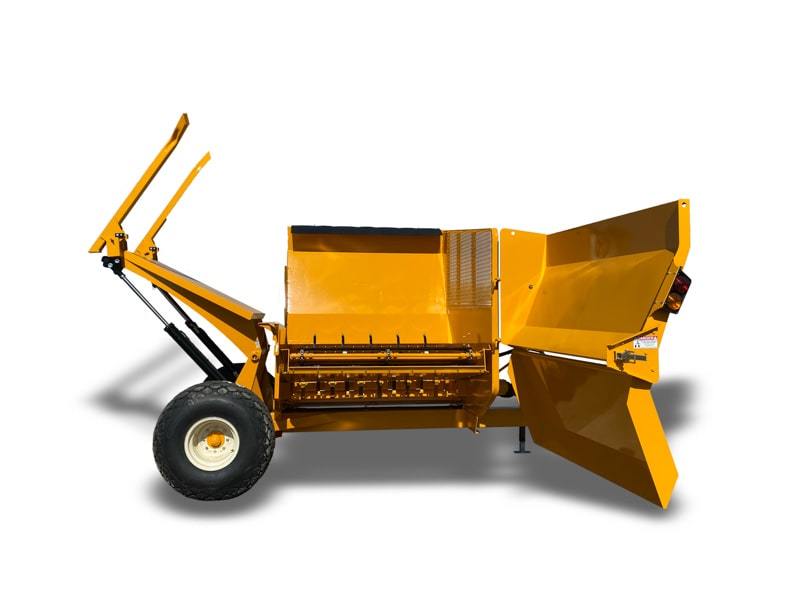

Bale Ejection Door and Easy Maintenance AccessThe side door swings out allowing for bale ejection if mold or other unwanted materials are discovered mid process.

In Cab ControlsOnly one tractor remote is required making hooking up quick and easy. All electric controls can be mechanically overridden.
(standard on 7830 & 7830-TD)

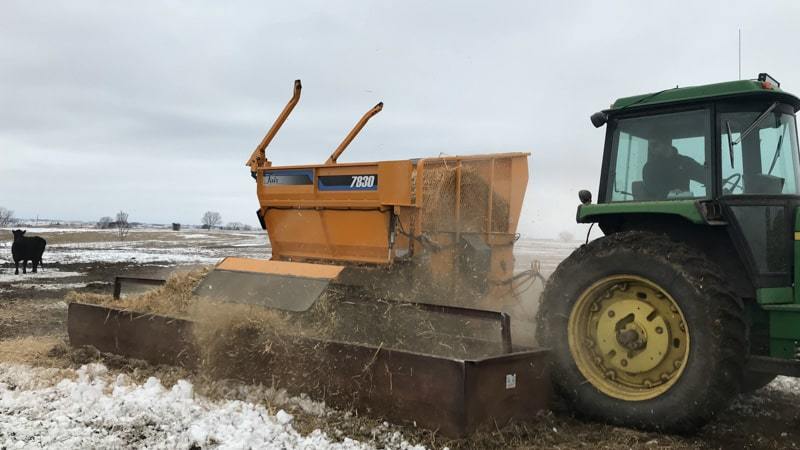

Adjustable Discharge DoorThe hydraulically operated door enables operators to bunk and windrow feed or fan out hay for bedding from the convenience of the cab.

7830 Bale Processor adjustable dischargeThe discharge opening can be quickly adjusted with two latches. This feature accommodates hay that is wet or saturated to be processed without plugging.

Easy Twine RemovalThe patented parallel running bars create separation between the twine and rotor, allowing the operator adequate space to insert a cutting tool for easy twine removal.

16.5L-16.1 Flotation Tires

MODEL7830
Horsepower:85 HP
PTO:1,000
Hydraulic Remotes:1 Double Acting
Bale Size Capacity:6x6' - 2 Bales
Slug Bar Adjustment:Electric/Hydraulic
Controls:In Cab Full Feature
Length:15'6"
Height:8'10"
Width:9'1"
Weight:4,300 lbs

7800 Series Bale Processors PDF
