FAIR MANUFACTURING BALE PROCESSORS

BALE PROCESSOR

7810

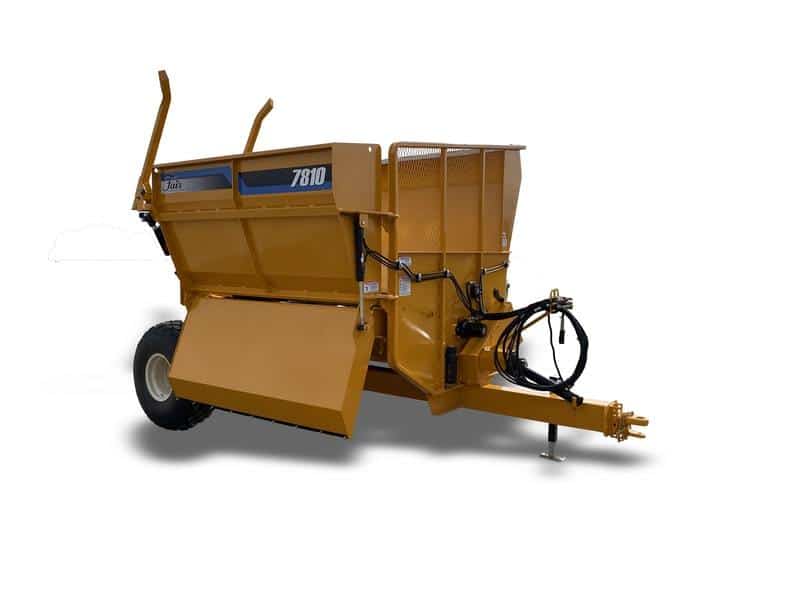

The 7810 Bale Processor is our base model bale processor. This side discharge bale processor features all of the functions of the 7830 model but is controlled through individual tractor remotes.

The 7810 offers the perfect combination of value and functionality. Industry leading torque for bale rotation, heavy flails, and a patented side ejection door make your job easier in the field.

Cattle feeding and bedding must be done in every weather condition. Your hay processor should handle bales in any condition - flat, frozen, wet, hard or soft. Our 7810 Round Bale Processor will deliver the functionality you need to get the job done at the right price.

  • Patented Bale Ejection Door
  • Easy Maintenance Access
  • Adjustable Hay Discharge Opening
  • Hydraulic Slug Bars
  • Hydraulic Discharge Door
  • Heavy Duty Conveyor
  • This bale shredder has a Patented Rotor Design
  • Fine Cut Stationary Knives

Big Gap Slat Spacing

A large gap between the slats pushes the bale rather than carrying the bale, translating to less slippage of the bale over the slats and less wear and tear on components (standard on all models).

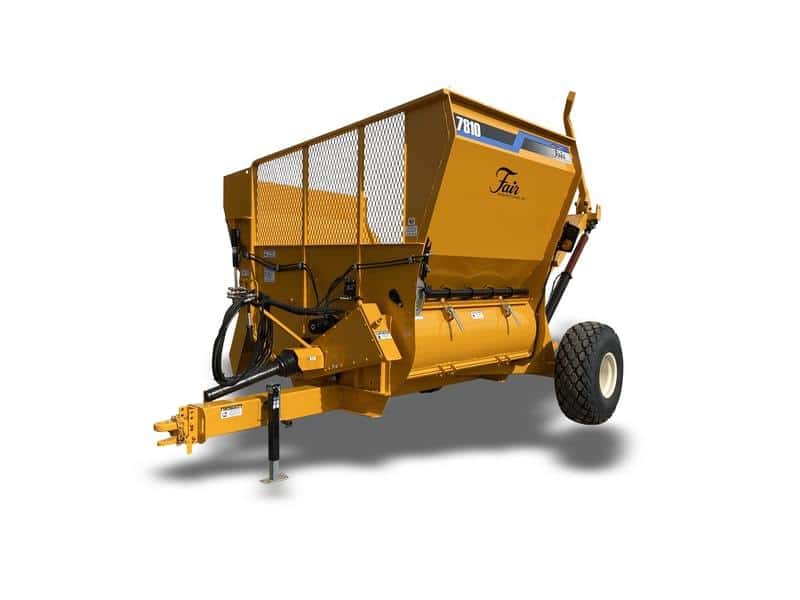

Stationary Knives & FlailsThe flails on the rotor pass through removable stationary knives to chop hay for a more palatable consumption and a finer cut. (standard on all models)  5/8”x 2” flails are heaviest on the market.

Hydraulic Slug BarsThe hydraulic slug bars allow the operator to decrease knife exposure as the bale gets processed down to a smaller core for complete control of discharge volume.  (standard on all models)

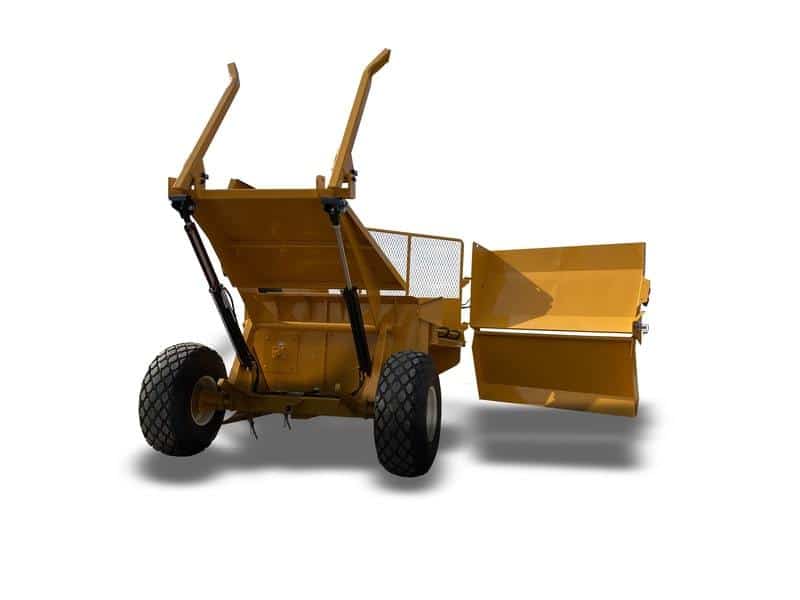

Bale Ejection Door and Easy Maintenance AccessThe side door swings out allowing for bale ejection if mold or other unwanted materials are discovered mid process.

Adjustable Discharge DoorThe hydraulically operated door enables operators to bunk and windrow feed or fan out hay for bedding from the convenience of the cab.

The discharge opening can be quickly adjusted with two latches. This feature accommodates hay that is wet or saturated to be processed without plugging.

Easy Twine RemovalThe patented parallel running bars create separation between the twine and rotor, allowing the operator adequate space to insert a cutting tool for easy twine removal.

16.5L-16.1 Flotation Tires

MODEL7810
Horsepower:85 HP
PTO:1,000
Hydraulic Remotes:3-4 Double Acting
Bale Size Capacity:6x6' - 2 Bales
Slug Bar Adjustment:Manual
Controls:N/A
Length:15'6"
Height:8'10"
Width:9'1"
Weight:4,300 lbs
Style:Side Discharge Bale Processor With Blower

7800 Series Bale Processors PDF
