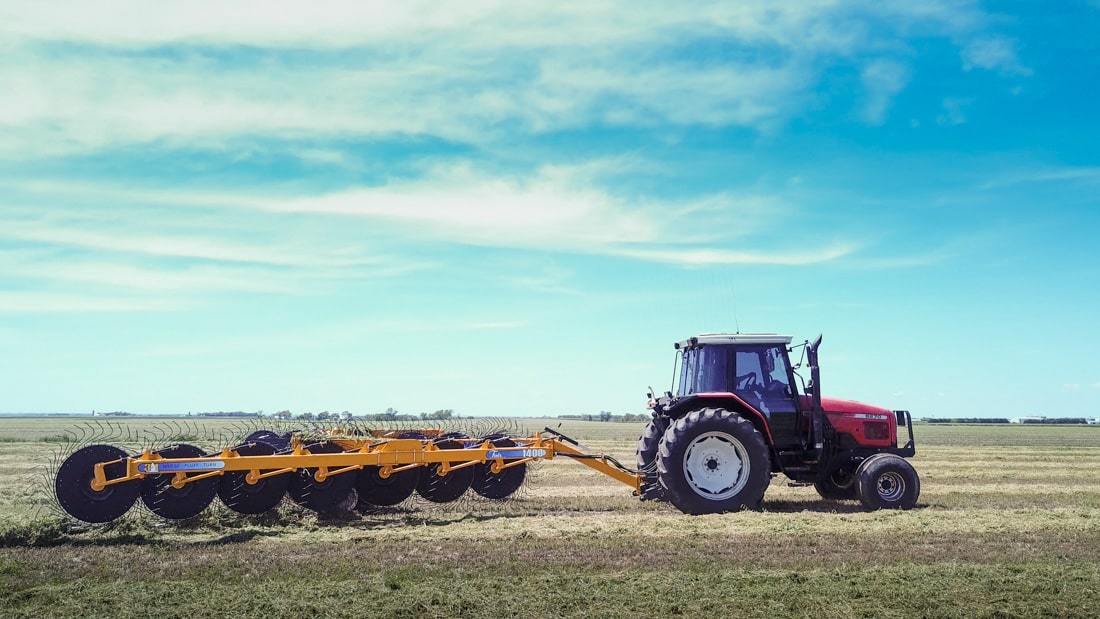

High Capacity Hay Rakes

The Ultimate Tool for High Quality Hay Production

1400 & 1600 Series
Hay Rakes

Improve Hay Production Quality

Every farmer needs to ensure they bring in the highest quality crop possible - especially when it comes to baling hay.

The Fair Manufacturing High Capacity Hay Rakes helps you speed up your hay production.  The agile 1400 & 1600 Series Hay Rakes use a centralized frame to give you industry leading maneuverability & turn radius, while maintaining high capacity clearance with the external wheel frame beams.  The Hay Rake allows crops to be baled up to a day sooner creating much better forage quality.  The 3-in-1 function of the Hay Rake allows operators to gently turn, fluff and merge their crop to accelerate drying times.

MODEL14001600
Number of Wheels1416
Wheel Diameter60"60"
Raking WidthUp to 28'Up to 32'
Windrow Width40"-72"40"-72"
Transport Length27'30'
Transport Width134"134"
Transport Height120"120"
Weight5000 lbs5400 lbs
Tractor Remotes 11
ControlsWeatherproof Control PanelWeatherproof Control Panel

Options

Center Kicker Wheel

60" Rubber Tooth Wheels

Rake Teeth Support Bands

3 in 1 | Turn - Fluff - Merge

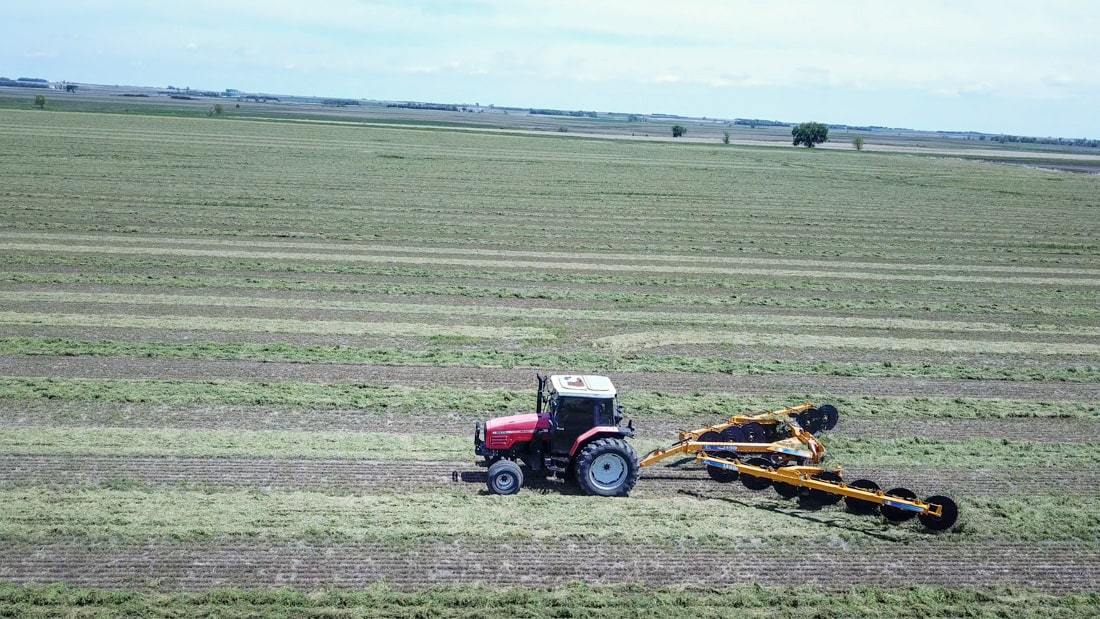

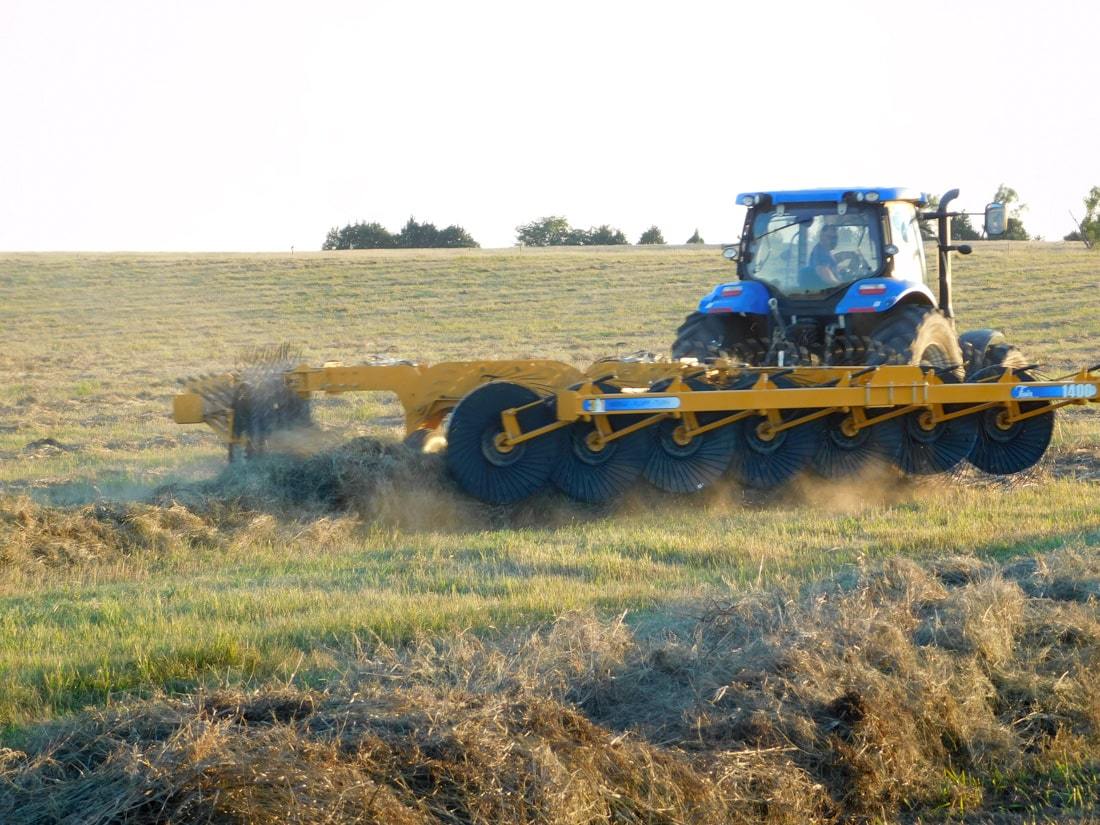

Turn hay windrows with the Fair Manufacturing Hay Rake

Turn

  • Roll two windrows over at once without merging them together
  • Allows crops to be rolled onto dry ground while keeping windrows separated for drying exposure

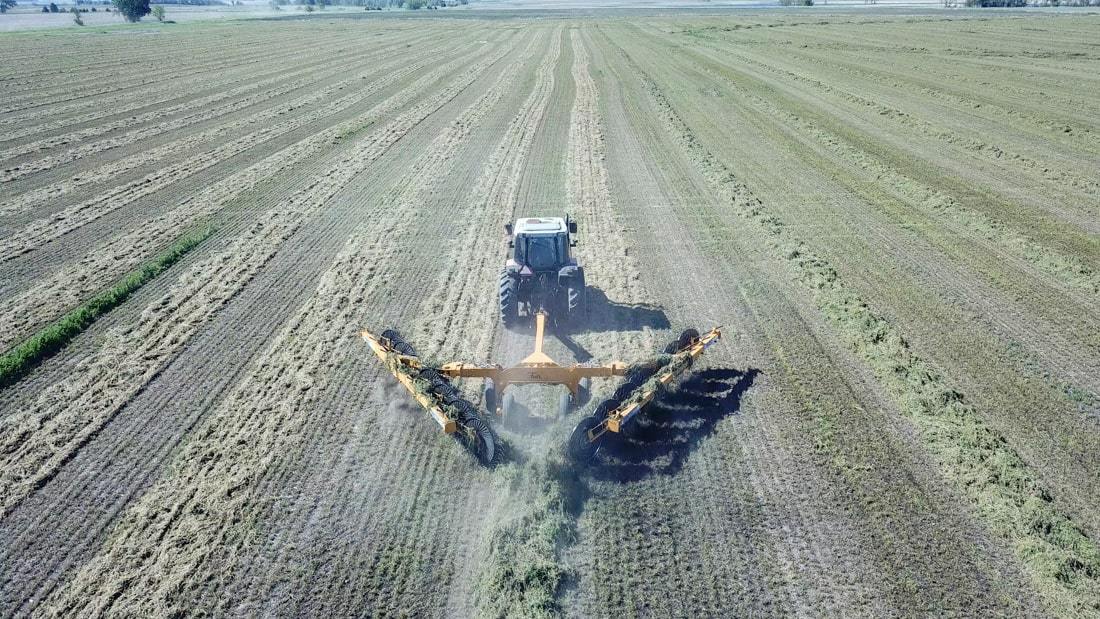

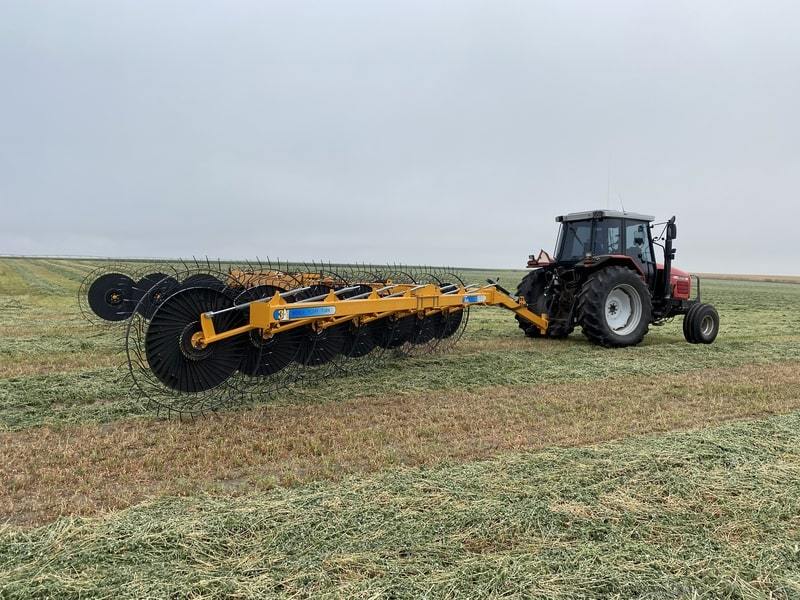

Fluff hay windrows with the Fair Manufacturing Hay Rake

Fluff

  • Gently lifts hay while maintaining a wide windrow for drying exposure
  • Hay is fluffed up to increase windrow volume
  • Lifts the crop off the moist ground
  • Fluffing breaks up the "top layer seal" and blends the crop for maximum drying

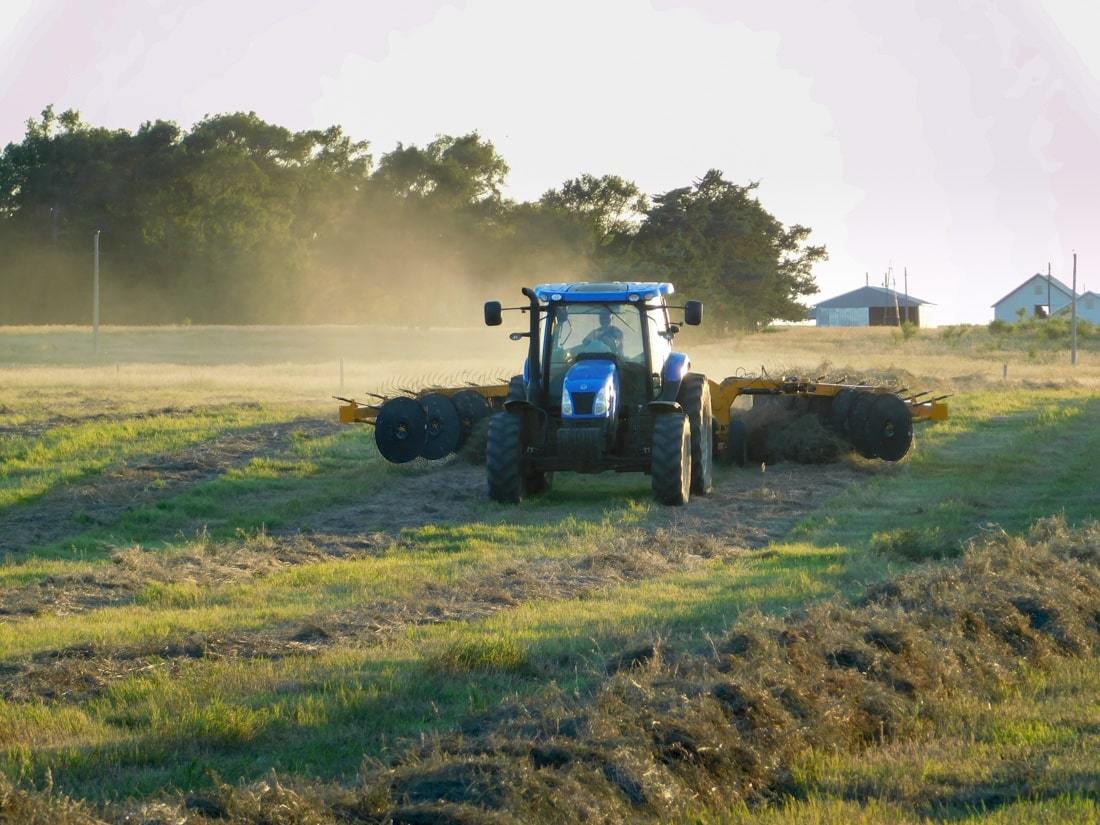

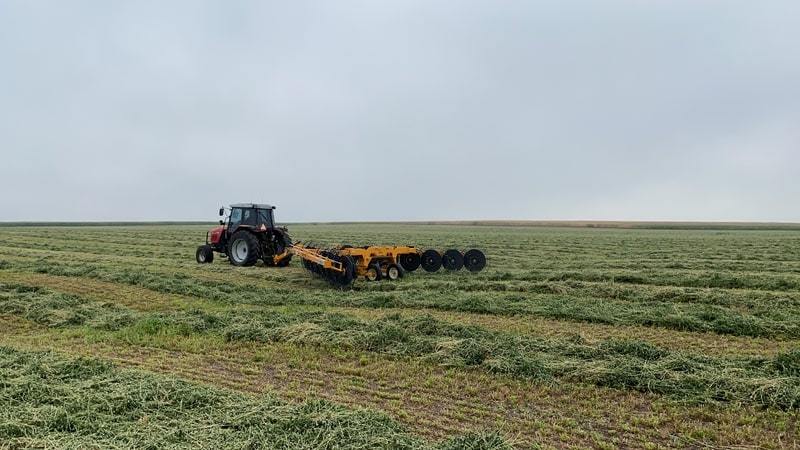

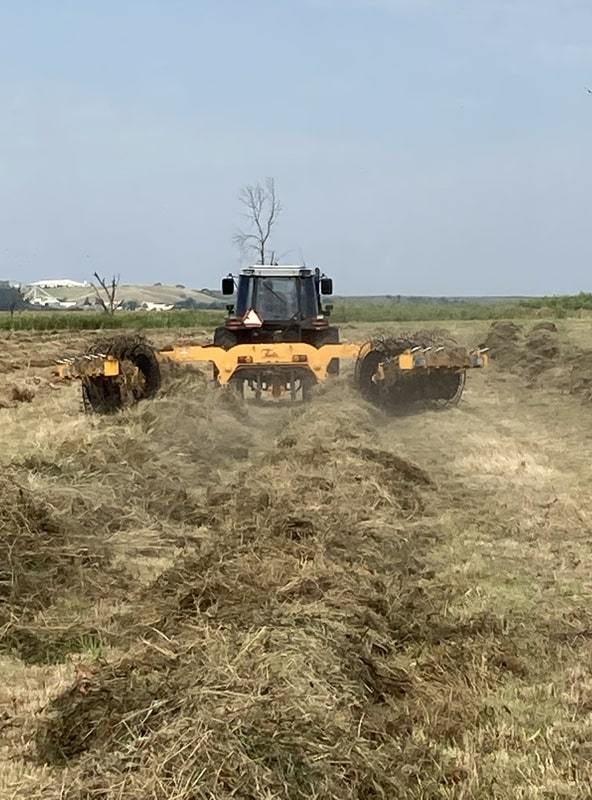

Merge 2 hay windrows into 1 with 60" wheels on the Fair Manufacturing Hay Rake

Merge

  • 60" wheels gently merge 2 windrows into 1
  • Infinite windrow width adjustment
  • Exterior wheel frame for high capacity
  • Adjustable spring wheel tension with high range flotation

Features & Design

Ultimate Control

Only one tractor remote is required. Weatherproof controls enable the operator to adjust all functions from the tractor.

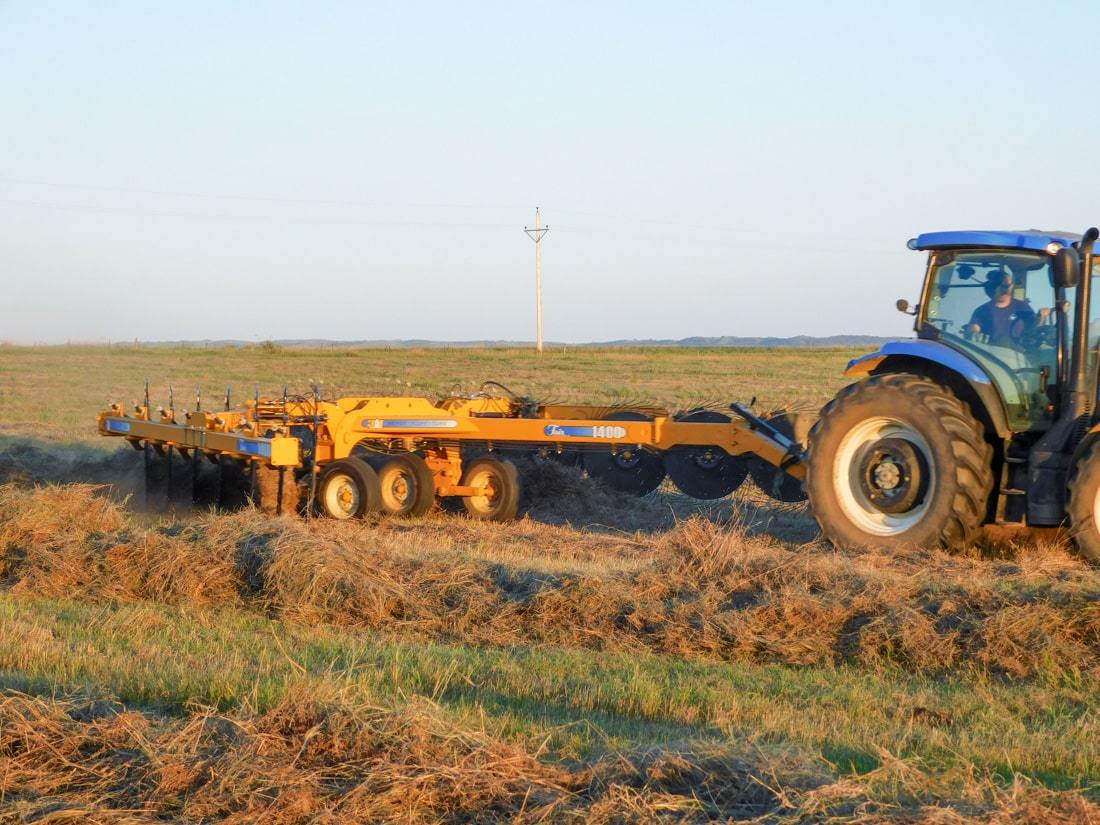

Fair Manufacturing Hay Rake - superior suspension

Superior Suspension

The frame incorporates a walking tandem axle that works together with a spring suspension system.  Together this gives the frame industry leading floation.

Fair Manufacturing Hay Rake - High Capacity

High Capacity

The wheel frame beams are mounted behind the wheels allowing for full capacity of the wheel in heavy crops.  This eliminates spots where hay can bridge or hang up.  In addition the large 60" diameter wheels turn slower for less wear and deliver higher capacity.

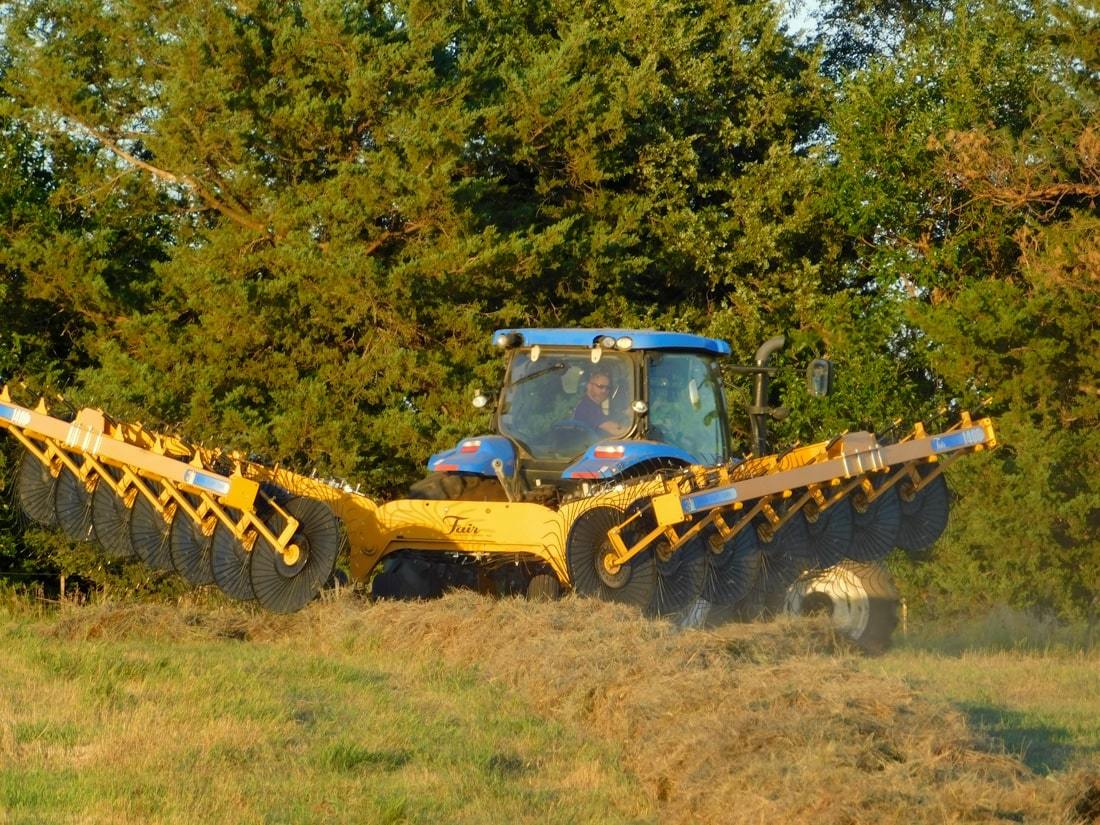

Fair Manufacturing Hay Rake - speed & maneuverability

Speed & Maneuverability

The centralized frame enables a much tighter turning radius.  This enables the operator to turn around much easier on end rows eliminating the need for skipping rows. No caster support wheels enable the rake to fold quickly and transport at road speeds with excellent stability.

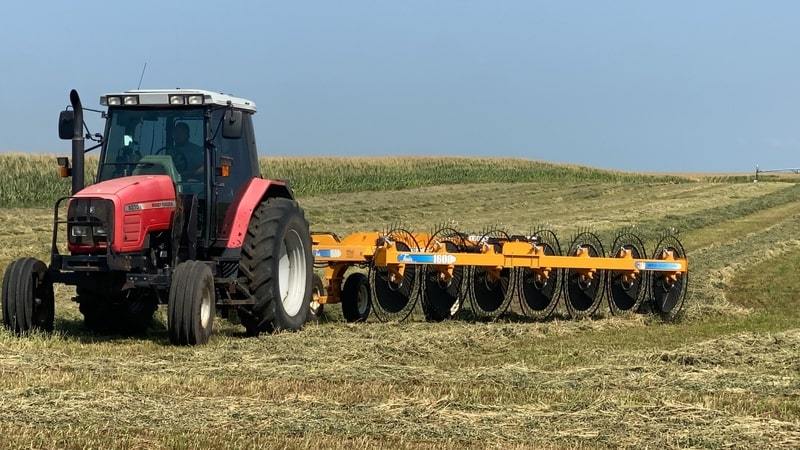

Fair Manufacturing Hay Rake - dual spring wheel suspension

Dual Spring Wheel Suspension

Rake wheels have a large range of floatation for ground contouring.  Rake wheels have an adjustable floatation spring and adjustable counteracting spring to rapidly return the wheel if it bounces up.  This enables the rake wheels to follow the ground accurately even at high speeds.
